HPC 板程序升级

HPC 板程序升级

1.问题现象：
VEGA X5 更换HPC 板之后打印测试条正常，但是打印门幅超过150cm时报超限错误，不能打印
1. Problem phenomenon:
After replacing the HPC board, the VEGA X5 prints the test strip normally, but when the print width exceeds 150cm, an over-limit error is reported and the printing cannot be performed.
2.解决措施：
1）打开网页，输入地址：192.168.50.97
                                             192.168.51.98
                                             192.168.52.99
                                                      ......                                    注：不同的设备HPC 板数量不同，每块板对应两个IP
2.Solution:
1) Open the webpage and enter the address: 192.168.50.97
                                                                             192.168.51.98
                                                                             192.168.52.99
                                                                                     ......
  Note: Different devices have different numbers of HPC boards, and each board corresponds to two IPs

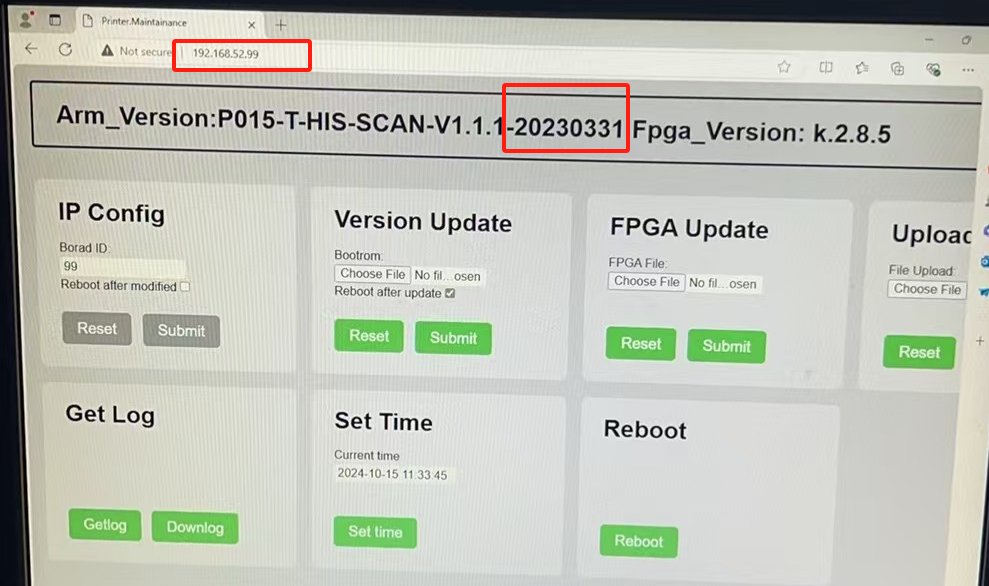

2)网页打开后如下图所示：
2) The webpage is opened as shown below:

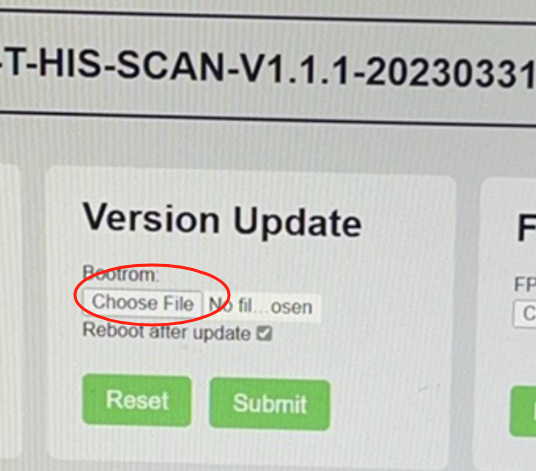

3）将0331 程序升级到0811，导入程序文件，点击submit，等待升级成功即可。
3) Upgrade the 0331 program to 0811, import the program file, click submit, and wait for the upgrade to be successful.

4）升级完成后显示0811版本（一块数据板升级只需要选择一个IP 即可：例如97,98，只需升级97 即可完成升级）
4) After the upgrade is completed, the version 0811 will be displayed (for a data board upgrade, you only need to select one IP: for example, 97, 98, you only need to upgrade 97 to complete the upgrade)
