Model H KATANA喷头，Sever软件读取不到喷头序列号，温度，电压

问题描述：

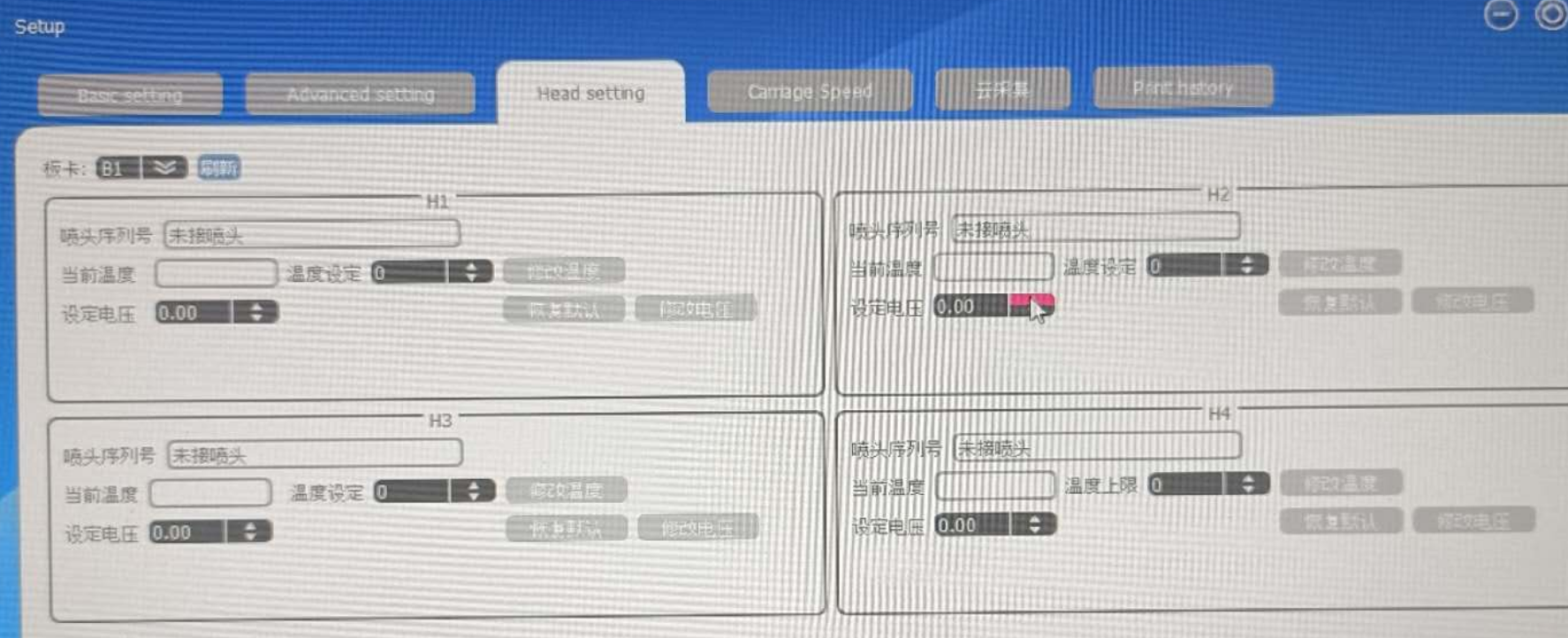

Sever 软件读取不到喷头参数

Sever software can't read head data

问题分析：

Problem Analysis

主要原因是设备硬件版本比较老，需要升级软件

The main reason is that the device hardware version is old and needs to be upgraded.

问题解决：

Problem Solving

附件1是升级程序，附件2是升级软件

Attachment 1 is the upgrade program, and Attachment 2 is the upgrade software.

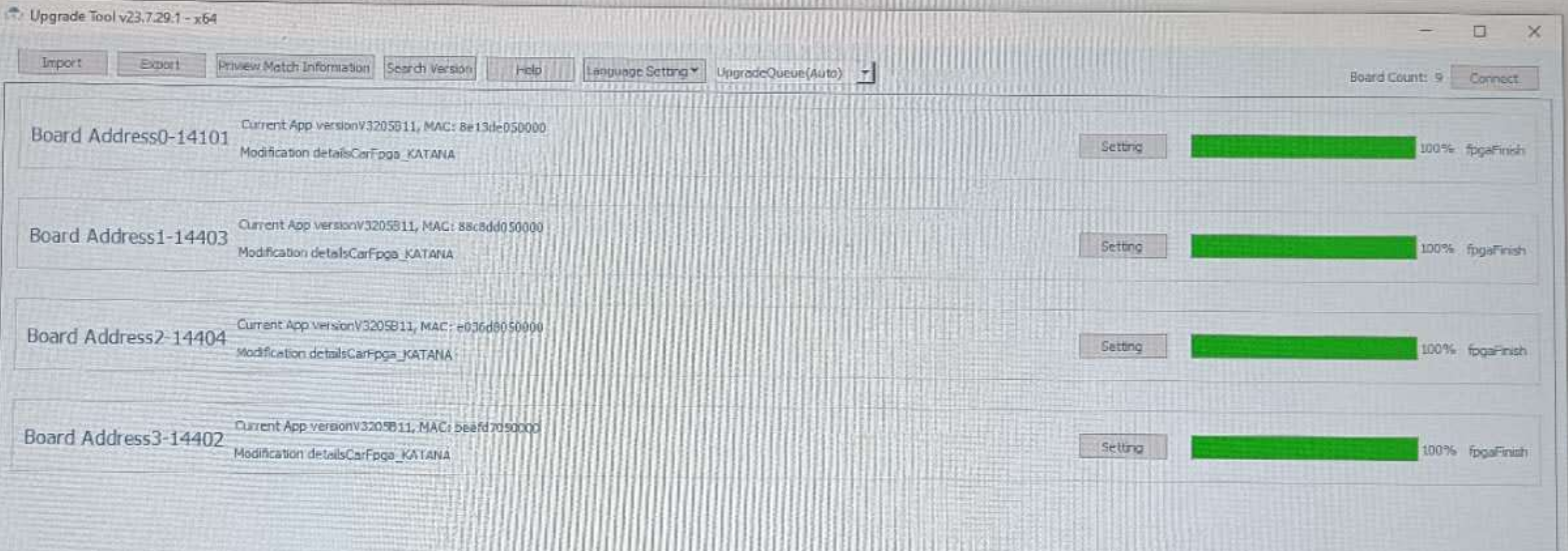

打开升级软件，input 升级程序，出现以下界面

Open the upgrade software, enter the upgrade program, and the following interface will appear

model H 一共四块头板，然后一块块点击 upgrade 完成升级即可。

Model H has four head panels in total. Just click upgrade on each panel to complete the upgrade.
